Automatic Feed Box Die Cutting Machine Full Automatic Die Cutter

Ask Lasest Price
Brand Name :	TONGBAO
Supply Ability :	5 Set/Sets per Month
Price :	$48,000.00 - $50,000.00/sets

Add to Cart

Product Details
Company Profile

Automatic Feed Box Die Cutting Machine Full Automatic Die Cutter

PRODUCT SPECIFICATIONS

Function and characteristics:

1. The use of the patented lead edge feeding structure can effectively prevent and reduce the damage to the paper printing surface. 2. This machine is mainly used for corrugated paper of no less than 3mm. 3.The main chain (Germany) adopts heavy load and high precision transmission chain, with very small production error, high tensile strength and wear resistance. 4.There are two ways of receiving paper, such as towing board and trolley, which greatly improve the working efficiency. It has photoelectric detection device, safe and reliable, and ensure the fast and steady receiving of paper. 5.It has overload protection mechanism, to achieve accidental overload, active separation of the die - cutting board frame can effectively prevent the die – cutting board sagging and fall off. 6.Pneumatic lock plate mechanism adopts imported cylinder, stable performance, convenient and fast operation. 7.The electric control system is controlled by PLC and equipped with various safety protection devices, which can give audible and visual alarm in case of failure and shut down automatically, truly guaranteeing the man-machine safety. 8.The timing and quantitative automatic oil supply system can ensure the full lubrication of other moving parts of the machine and have long service life. 9.Stripping unit (optional).

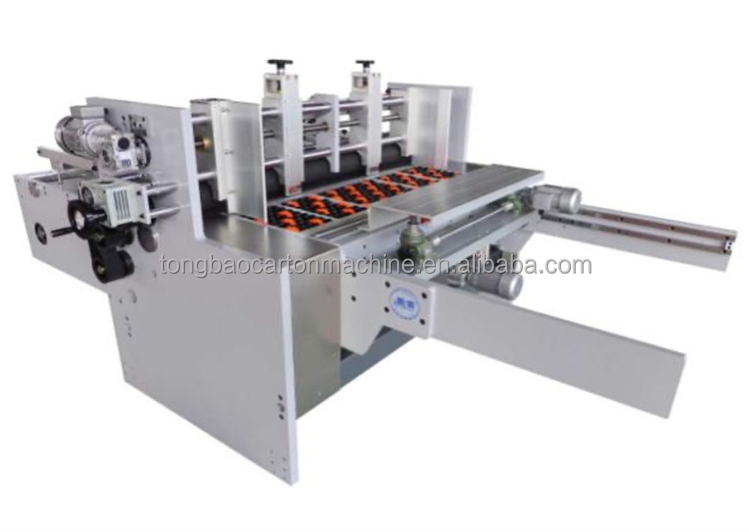

Feeding part

1.Use high quality steel to install and fix firmly, easy to operate. 2.Can be in the normal continuation of paper work, code installed the next die-cutting paper, there is no need to cause code paper link caused by the waste of time. 3.The use of the patented preedge feed structure can effectively prevent and reduce the damage to the paper printing surface. 4.The leading edge feed adopts vacuum adsorption feed and is driven by domestic famous brand servo motor. 5.There are two feeding methods, from whiteboard paper to 7mm corrugated paper, which can be used to meet a variety of paper sizes and a wide range. 6.Equipped with counter photoelectric, can automatically rise and fall, but also according to whether the paper is bent, adjust the photoelectric position, in order to ensure that the feeding front and the paper baffle flat.

Feeding table

1.It is equipped with opposite photoelectricity. It can automatically lift and manually adjust the lifting distance. 2.It can also adjust the photoelectric position according to whether the paper is bent or not, so as to ensure that the front edge of the continued paper is flush with the feed baffle.

Die cutting part and Delivery system

1.The maximum die-cutting pressure of the main machine is 350N/ cm² 2.The main engine is driven by worm wheel and worm, with large torque, stable and reliable transmission, low noise and long service life. 3.The main wall panel is made of high quality ductile iron, and the upper platform and the moving platform are also made of high quality ductile iron, so as to ensure its ability to resist compression, deformation and vibration. 4.And equipped with a forced lubricating oil pump, the realization of each lubrication point oil quantity. Die - cutting knife version easy installation, extraction freely, short version time. 5.(The bearings and electrical parts are selected from well-known foreign brands)

Stacker part

1.Automatic counting, scattered board alarm. Automatic drop of paper receiving, automatic warning and falling of paper receiving full. 2.According to the size of the product, adjust the left and right and front and back of the paperboard to achieve the paper receiving level.

Striping part (optional) 1.The full waste cleaning template adopts the central positioning system, automatic clamping, quick and convenient to the version; The waste removal frame adopts motor control lifting device; It can automatically remove the three and four sides and the intermediate waste, so as to ensure a clean and efficient production. Electric system The electronic control system is controlled by PLC and equipped with various safety protection devices. When the fault occurs, the sound and light alarm will be given and the machine will stop automatically to ensure the safety of man and machine

type	MY-1300	MY-1500	MY-1650
The maximum feed size	1300×930	1500×1100	1650x1200
Minimum feed size	450×400	500×450	550×500
Maximum die cutting size	1280×910	1480×1080	1630×1180
mechanical speed	5500S/H	5500S/H	5000S/H
working pressure	350T	350T	350T
Main motor power	11kw	11kw	15kw
Total power	38kw	38kw	42kw
The mechanical net size	9100×2300×2300	11000×2450×2300	13000×2600×2300
Machine weight	20T	24T	27T

Packing & Delivery

SALES AND SERVICE NETWORK

Company Profile

Our corporation specializes in the development and production of cardboard machinery in Northern China. There are 280 employees in our corporation now and 68 staff members specialize in scientific research and technology. With over 25 years of development, we persist in scientific innovation, import, digesting and absorbing new technology of the domestic and overseas markets incessantly. We have accumulated abundant experience of cardboard machinery design, development and production, and have established a scientific supervising system and a perfect inspection method. Now we are the key & leading enterprise in the cardboard machinery production field in Northern China. We consider great importance of the research and development of new products. We sincerely invite many experts of colleges and institutes every year to make technical directions, so we have great technical strength as our supporter, absorbing the new arts and techniques of the domestic and overseas markets and making our cardboard machinery advanced step by step. Our corporation is located in Dongguang county, Cangzhou city, with Jing-Hu railway, No.104 National Highway (Jingfu highway) and Jing-Hang Great Canal in the west, and Jing-Hu Freeway and a speed-railway in the east. The geographic condition is fine. The transportation is convenient. We warmly welcome guests and friends to come and visit our factory. Our products are sold to about 20 provinces, cities and municipalities of our country and are exported to African and European countries. The quality of our products is reliable; the design of the machines is novel and beautiful. Our goods feature high quality and longevity, enjoying a high reputation among worldwide customers.

Exhibition

FAQ

1. who are we?
We are based in Hebei, China, start from 2004,sell to Domestic Market(00.00%),South Asia(00.00%),Western Europe(00.00%),Mid East(00.00%),Africa(00.00%),Southeast Asia(00.00%),South America(00.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Carton Printing Machine,Die cutting machine,Corrugated production line,Carton machine,corrugated gluer machine

4. why should you buy from us not from other suppliers?
We are professional in carton and corrugated paperboard making machine more than 25 years.Our machine are well apprised by mass clients for many years by good quality, novel exterior appearance, durable, long time and lifelong following service.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
