    Automatic Grade Automatic Carton Folding Gluing Stitching Machine for Carton Packaging

    Ask Lasest Price
    Brand Name : TB
    Supply Ability : 1 Set/Sets per Month
    Price : $26,500.00/sets >=1 sets
    • Product Details
    • Company Profile

    Automatic Grade Automatic Carton Folding Gluing Stitching Machine for Carton Packaging

    Product Description
    Automatic Grade Automatic Carton Folding Gluing Stitching Machine for Carton Packaging
    Automatic Grade Automatic Carton Folding Gluing Stitching Machine for Carton Packaging
    Automatic Grade Automatic Carton Folding Gluing Stitching Machine for Carton Packaging
    Automatic Grade Automatic Carton Folding Gluing Stitching Machine for Carton Packaging
    Automatic Grade Automatic Carton Folding Gluing Stitching Machine for Carton Packaging
    Automatic Grade Automatic Carton Folding Gluing Stitching Machine for Carton Packaging
    Automatic Grade Automatic Carton Folding Gluing Stitching Machine for Carton Packaging

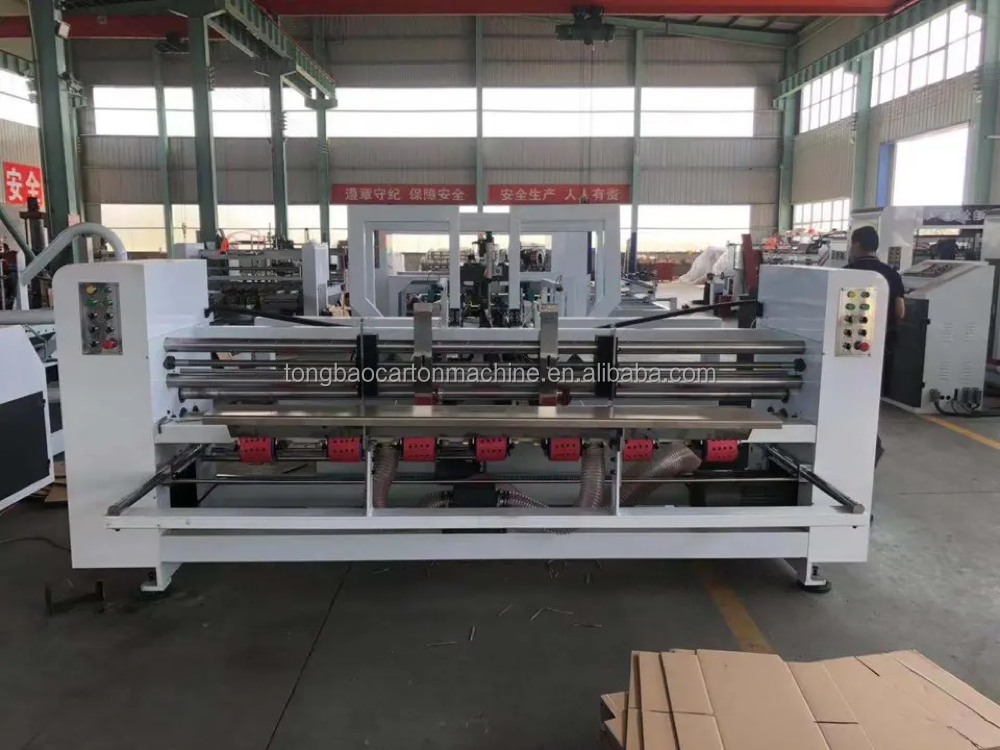

    FUNCTION The fully automatic gluing stitching all-in-one machine is composed of a paper feeding part, a folding part, a nail box part, a correction part and a counting output part. It adopts PLC computer control, one-key adjustment of input data, order storage, and easy operation. The sticky nails of the main machine are separated up and down, one-button conversion, left and right electric traverse. Nailing and sticking independent power operation, convenient, quick and efficient adjustment.
    Feeding The wallboard is welded with steel plate. The transmission shaft is welded with seamless steel pipe, the pipe wall thickness is 20mm, the shaft surface is plated with hard chromium, and the bearing is made in WAGANGDIAN, Harbin. High pressure fan is used to feed the paperboard to ensure stable paper feeding. Each wear-resistant air suction belt can control the air volume separately to ensure the smooth feeding of paperboard. Drive synchronous toothed belt for paper feeding and smooth operation.

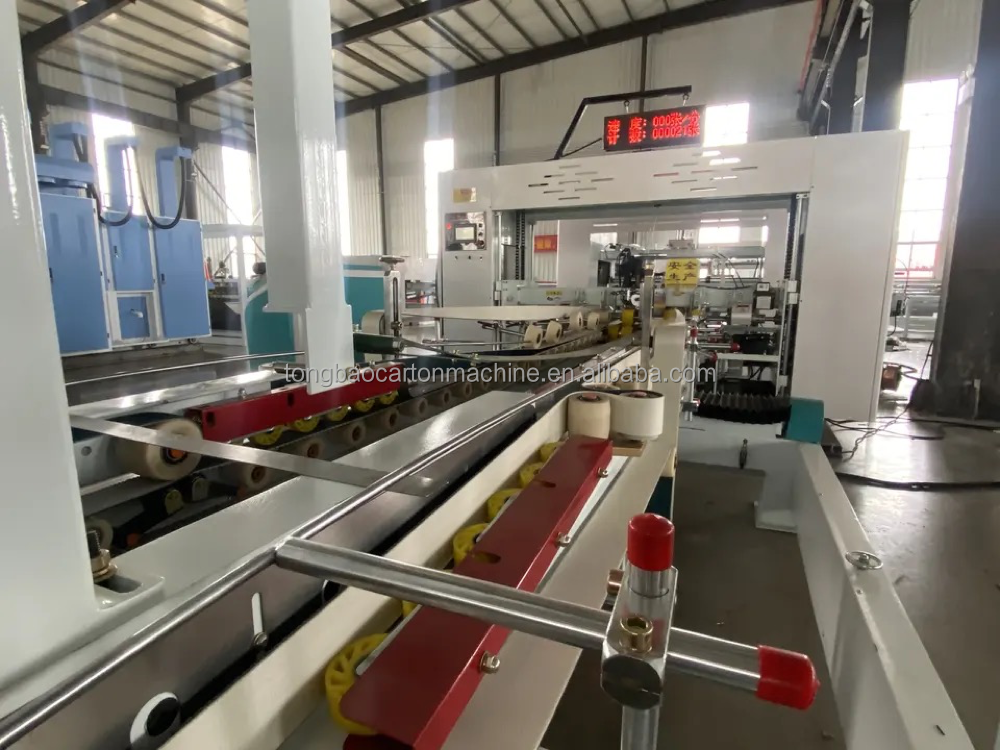

    Folding The folding part adopts two kinds of pressing: pre pressing wheel and forming wheel, and then re strengthens the paperboard pressing line on the original pressing line. The position is accurate, the paperboard is not broken, the folding is beautiful, and the flat belt is pressed, folded and the synchronous belt is used to transport the finished products smoothly.
    Stitching The servo motor of the nail box is independently controlled, with automatic paper feeding, automatic nailing and automatic counting. The machine head is made of special material, which is wear-resistant and stable with low noise. The head servo motor is directly driven with high speed and accurate nail distance. Large plate nail line reduces wire change time and improves work efficiency.
    Correction unit The bearing eccentricity correction (with differential correction) makes the paperboard folding beautiful, and the size of the correction part can be adjusted horizontally. Counting output unit Finished cartons are stacked and output, so that cartons can be output, and packaged smoothly.
    Specification
    Type
    LC-2600
    Max.Dimension (a + b) X2 (mm)
    2600mm
    Min.Dimension (a + b) X2 (mm)
    720mm
    Max.Dimension (C + D + C) X2 (mm)
    1000mm
    Min.Dimension (C + D + C) X2 (mm)
    300mm
    Max. Width B (mm)
    550mm
    Min. Width B (mm)
    160mm
    Max. Length A (mm)
    750mm
    Total Power (Kw)
    23kw
    Min. Length A (mm)
    160mm
    Nail Tongue Width E (mm)
    35-40mm
    Machine Speed(Nail/Min)
    800nails/min
    Number of nails
    1-99
    Nail distance (mm)
    30-80mm
    Nail box speed
    60m/min
    110-130m/min
    60m/min
    Packing & Delivery
    Automatic Grade Automatic Carton Folding Gluing Stitching Machine for Carton Packaging
    Company Profile
    Automatic Grade Automatic Carton Folding Gluing Stitching Machine for Carton Packaging
    Our corporation specializes in the development and production of cardboard machinery in Northern China. There are 280 employees in our corporation now and 68 staff members specialize in scientific research and technology. With over 25 years of development, we persist in scientific innovation, import, digesting and absorbing new technology of the domestic and overseas markets incessantly. We have accumulated abundant experience of cardboard machinery design, development and production, and have established a scientific supervising system and a perfect inspection method. Now we are the key & leading enterprise in the cardboard machinery production field in Northern China. We consider great importance of the research and development of new products. We sincerely invite many experts of colleges and institutes every year to make technical directions, so we have great technical strength as our supporter, absorbing the new arts and techniques of the domestic and overseas markets and making our cardboard machinery advanced step by step. Our corporation is located in Dongguang county, Cangzhou city, with Jing-Hu railway, No.104 National Highway (Jingfu highway) and Jing-Hang Great Canal in the west, and Jing-Hu Freeway and a speed-railway in the east. The geographic condition is fine. The transportation is convenient. We warmly welcome guests and friends to come and visit our factory. Our products are sold to about 20 provinces, cities and municipalities of our country and are exported to African and European countries. The quality of our products is reliable; the design of the machines is novel and beautiful. Our goods feature high quality and longevity, enjoying a high reputation among worldwide customers.
    Exhibition
    Automatic Grade Automatic Carton Folding Gluing Stitching Machine for Carton Packaging
    FAQ
    1. who are we?
    We are based in Hebei, China, start from 2004,sell to Domestic Market(00.00%),South Asia(00.00%),Western Europe(00.00%),Mid East(00.00%),Africa(00.00%),Southeast Asia(00.00%),South America(00.00%). There are total about 11-50 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Carton Printing Machine,Die cutting machine,Corrugated production line,Carton machine,corrugated gluer machine

    4. why should you buy from us not from other suppliers?
    We are professional in carton and corrugated paperboard making machine more than 25 years.Our machine are well apprised by mass clients for many years by good quality, novel exterior appearance, durable, long time and lifelong following service.

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CIF,EXW;
    Accepted Payment Currency:USD;
    Accepted Payment Type: T/T,L/C;
    Language Spoken:English,Chinese
