    Corrugated Paper Automatic Flute A2 Laminating Machine for Customer Requirements

    Ask Lasest Price
    Brand Name : Tongbao
    Supply Ability : 25 Set/Sets per Month
    Price : $9,000.00/sets >=1 sets
    • Product Details
    • Company Profile

    Corrugated Paper Automatic Flute A2 Laminating Machine for Customer Requirements

    Automatic High-Quality Corrugated Cardboard Laminating Machine


    Product Description

    Main Characteristics:


    1. Automatic Flute Laminating machine adopts chain pusher and back registration system together with spring blade side lay and vacuum sucking conveying system makes this series of machine fit for a large range of paper, high precision while remaining the features of easy operation and maintenance.
    2. The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production cost.
    3. Balancetested rollers, tight assembling technique, plus timing and tooth belt driving mechanic system makes the machine runs at low noise with high precision.
    4. The machine adopts automatic glue supply and recyclable glue circulating system.

    5. Self-developed high-strength feeder complicant with high configuration electric system makes the machine run at low malfunction and stable. The electric parts used are all world wide available brand or well-known Chinese brand.
    6. All material are inspected according to standard and the key parts such as the harmonic gear and bearings are imported ones.
    7. The bottom sheet for this machine can be A, B, C, D, E, F flute corrugated sheet.
    8. It can do three or five layer board to sheet lamination or board to board lamination. The range for top paper can be 200-600 GSM with top paper advance or alignment function.

    Parameters

    Technical Parameters:

    SPECIFICATIONS
    Model
    BZJ-1300
    BZJ-1480
    BZJ-1650
    Max Paper Size
    1300*1300mm
    1480*1480mm
    1650*1650mm
    Min Paper Size
    400*400mm
    400*400mm
    400*400mm
    Weight of top paperboard
    200-450gsm
    200-450gsm
    200-450gsm
    Max Speed
    7000sph
    7000sph
    7000sph
    Gross Power
    19kw
    26kw
    26kw
    Weight
    6.3t
    6.6t
    6.8t
    Overall Dimensions
    15400*2350*2960mm
    16100*2350*2960mm
    16770*2500*2960mm
    Laminating tolerance
    ±1.5
    ±1.5
    ±1.5

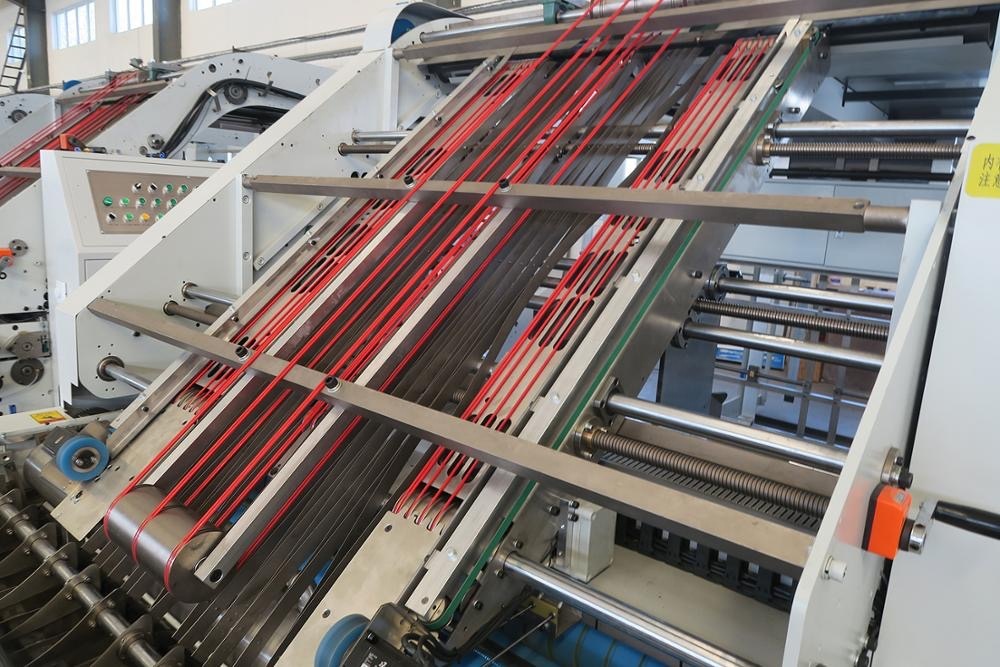

    Main Image

    Corrugated Paper Automatic Flute A2 Laminating Machine for Customer RequirementsCorrugated Paper Automatic Flute A2 Laminating Machine for Customer RequirementsCorrugated Paper Automatic Flute A2 Laminating Machine for Customer RequirementsCorrugated Paper Automatic Flute A2 Laminating Machine for Customer Requirements

    Corporate Profile

    Cangzhou Tongbao Carton Machinery CO., LTD is professional enterprise to invent, develop and produce the carton machinery in North of China. Adhering to scientific and technical innovation from beginning to the end and consistent introducing, consuming and absorbing the advanced technology at home and abroad for 23 years. Our products are well appraised by mass clients for many years by good quality, novel exterior appearance, durable, long time and lifelong following service.

    Corrugated Paper Automatic Flute A2 Laminating Machine for Customer Requirements


    We sincerely cooperate with clients from all over the world and we will meet the demands of clients with better production quality and more complete after-sales service.
