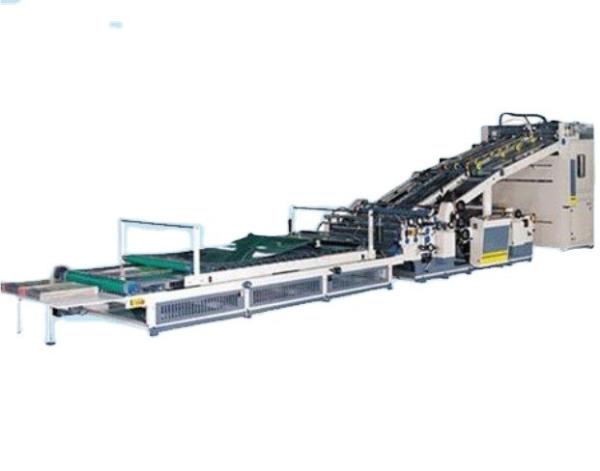

    BZJ-1600 Full-automatic Laminating Machine for Corrugated Cardboard Making

    Ask Lasest Price
    Brand Name : Tongbao
    Certification : ISO9001
    Supply Ability : 25 Set/Sets per Month
    Price : $8,000.00 - $10,000.00/sets
    • Product Details
    • Company Profile

    BZJ-1600 Full-automatic Laminating Machine for Corrugated Cardboard Making

    Automatic High-Quality Corrugated Cardboard Laminating Machine


    Main Characteristics:


    1. Automatic Flute Laminating machine adopts chain pusher and back registration system together with spring blade side lay and vacuum sucking conveying system makes this series of machine fit for a large range of paper, high precision while remaining the features of easy operation and maintenance.
    2. The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production cost.
    3. Balancetested rollers, tight assembling technique, plus timing and tooth belt driving mechanic system makes the machine runs at low noise with high precision.
    4. The machine adopts automatic glue supply and recyclable glue circulating system.

    5. Self-developed high-strength feeder complicant with high configuration electric system makes the machine run at low malfunction and stable. The electric parts used are all world wide available brand or well-known Chinese brand.
    6. All material are inspected according to standard and the key parts such as the harmonic gear and bearings are imported ones.
    7. The bottom sheet for this machine can be A, B, C, D, E, F flute corrugated sheet.
    8. It can do three or five layer board to sheet lamination or board to board lamination. The range for top paper can be 200-600 GSM with top paper advance or alignment function.

    Parameters

    Technical Parameters:


    Laminating

    precision

    ±1.5

    ±1.5

    ±1.5

    ±1.5

    Power

    10kw

    12kw

    12kw

    12kw

    Size

    13.5m×2m×2.4m

    13.5m×2.05m×2.4m

    13.5m×2.15m×2.4m

    13.5m×2.25m×2.4m

    Weight

    About 4.8t

    About 5t

    About 5.2t

    About 5.4t

    Bottom paper thickness

    A/B/C/E flute, 3/4/5 layer, less than 12mm thickness

    Surface paper gram weight

    150-600 g/m2

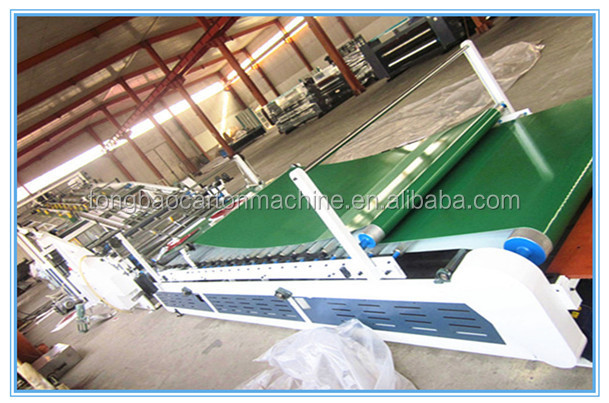

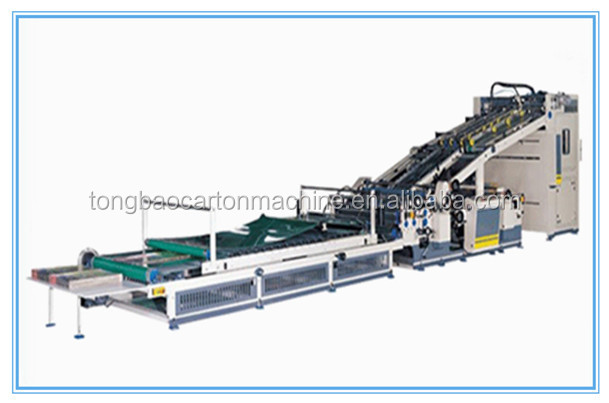

    Main Image

    BZJ-1600 Full-automatic Laminating Machine for Corrugated Cardboard MakingBZJ-1600 Full-automatic Laminating Machine for Corrugated Cardboard MakingBZJ-1600 Full-automatic Laminating Machine for Corrugated Cardboard MakingBZJ-1600 Full-automatic Laminating Machine for Corrugated Cardboard Making

    Corporate Profile

    Cangzhou Tongbao Carton Machinery CO., LTD is professional enterprise to invent, develop and produce the carton machinery in North of China. Adhering to scientific and technical innovation from beginning to the end and consistent introducing, consuming and absorbing the advanced technology at home and abroad for 23 years. Our products are well appraised by mass clients for many years by good quality, novel exterior appearance, durable, long time and lifelong following service.


    Main machine: All kinds of corrugated cardboard making machine and carton making machine,includingcorrugated paperboard production line(mill roll stand, single face, Preheater, glue machine, double facer, NC cut-off, thin blade slitter scorer, NC helical cross cutter, double bridge, conveyer, stacker ), full automatic (single color, double color, three color, four color, five color, six color )printing slotting and die-cutting machine, semi-automatic printing slotting and die-cutting machine, rotary die-cutting machine, rotary separately cutting creasing and slotting machine, four knives die-cutting machine, folder and gluer machine, laminating machine, stitching machine, stapler machine etc.

    Our corporation locates in Dongguang county, Cangzhou city which is the middle of the Bo Hai economic cooperation circle. The western neighborhood is JingHu railway, 104 national highway (Jingfu highway) we warm welcome guests and friends coming and visiting our factory.

    BZJ-1600 Full-automatic Laminating Machine for Corrugated Cardboard Making


    We sincerely cooperate with clients from all over the world and we will meet the demands of clients with better production quality and more complete after-sales service.
