    Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply

    Ask Lasest Price
    Brand Name : TB
    Supply Ability : 5 Set/Sets per Month
    Price : $35,000.00/sets >=1 sets
    • Product Details
    • Company Profile

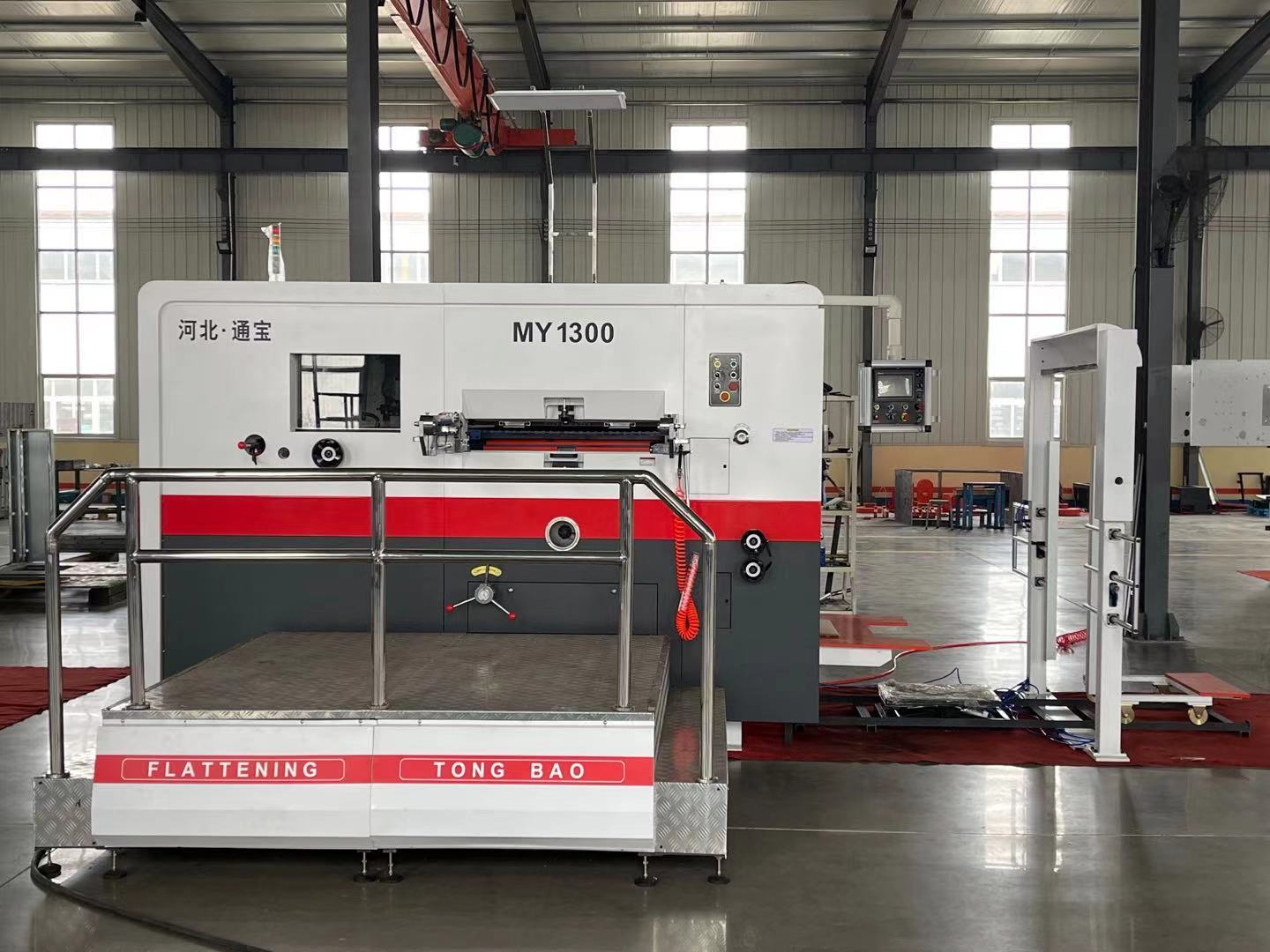

    Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply

    Product Overview

    TB-MY Series

    * Manual feeding can better adapt to warping paper and convenience to feeding, easy put paper in place.
    * The paper feeding table can be automatically raised with the paper, easy to operate.
    * The size of the grippers can be adjusted up and down with the thickness of the paper and bite paper firmly.
    * This machine adopts high strength rigid aluminum alloy gripper row , which is small and stable in its gripper edge,
    effectively preventing the gripper row from vibrating. Adjustable device is added to the front and rear positioning of the
    gripper row.
    * The main drive adopts pneumatic clutch, frequency modulation motor, smooth and rapid braking.
    * Die-cutting steel plate with high hardness and high elasticity of high manganese alloy spring steel material, durable.
    PRODUCT SPECIFICATIONS
    No
    Type
    MY-1300
    MY-1500
    MY-1650
    1
    Maximum paper size(mm)
    1300 x 930
    1500x1100
    1650x1200
    2
    Minimum paper size(mm)
    500 x450
    550 x500
    600x550
    3
    Maximum die cutting size(mm)
    1280 x910
    1480x1080
    1630x1180
    4
    Maximum die cutting pressure(T)
    350
    350
    350
    5
    Processable paper thickness (mm)
    ≤8
    ≤8
    ≤8
    6
    Steel plate thickness(mm)
    7
    7
    7
    7
    Top speed(P/h)
    5500
    5500
    5500
    8
    Rated power(Kw)
    14
    15
    17
    9
    Total weight(T)
    13
    15
    18
    10
    Overall dimensions
    3700x2300x2300
    4300x2450x2300
    5000x2600x2300
    SALES AND SERVICE NETWORK
    Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply
    Successful Project
    Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply
    Project in Thailand
    Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply
    Project in India
    Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply
    Project in Russia
    SIMILAR PRODUCTS
    Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply
    Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply
    Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply
    FAQ
    1. who are we?
    We are based in Hebei, China, start from 2004,sell to Domestic Market,South Asia,Western Europe,Mid East,Africa,Southeast
    Asia,South America. There are total about 11-50 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Carton Printing Machine,Die cutting machine,Corrugated production line,Carton machine

    4. why should you buy from us not from other suppliers?
    We are professional in carton and corrugated paperboard making machine more than 25 years.Our machine are well apprised by mass
    clients for many years by good quality, novel exterior appearance, durable, long time and lifelong following service.

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CIF,EXW;
    Accepted Payment Currency:USD;
    Accepted Payment Type: T/T,L/C;
    Language Spoken:English,Chinese
